Pain Management

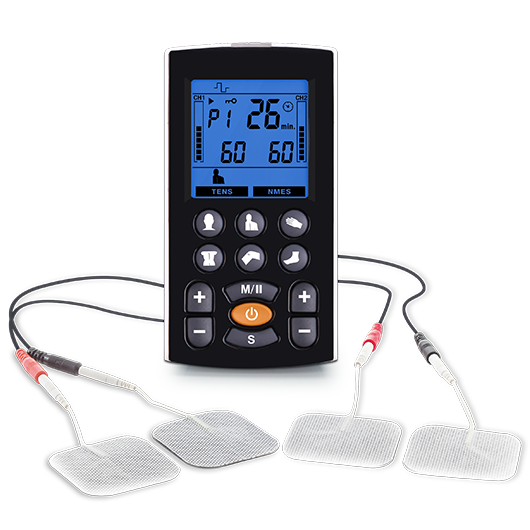

LT5101

The LT5101 is the newest standard in portable, multifunction electrotherapy offering patients two modalities in one user-friendly, ergonomic design - TENS and NMES 2 in 1.


Equipped with pre-set body part specific settings as well as a customizable option, the LT5101 intuitively guides the patient step-by-step to ensure the ideal therapeutic treatment throughout the healing cycle. In addition, patients can modify treatment time, pulse rate and duration (width), cycling time, and contraction/relaxation/ramp times.


Ÿ   2 in 1: TENS and NEMS

Ÿ   High tech design with extra-large LCD display

Ÿ   6 Therapeutic body part buttons available

Ÿ   Preset body programs or user defined modes option

Ÿ   Fully programmable treatment timer

Ÿ   Rechargeable 3.7V Lithium Ion Battery with LED Charging Indicator Light

Ÿ   Electrode Load Indicator

Ÿ   Compliance Meter

Ÿ   Portable design for on-the-go patients with removable belt clip


Product designationEasyRelief
ChannelDual channel
Treatment Modes2
Programs25
Adjustable intensityAdjustable, 0-100mA at 1000 ohm load each channel, 1 mA/Step
Pulse DurationTENS:50-400μs
NMES: From 200-400μs
Pulse waveformTENS:Symmetrical bi-phase rectangular wave
NMES: Biphasic rectangular
FrequencyTENS:1-150Hz
NMES: 1-100Hz
Power supply3.7V Li rechargeable battery pack Charger output: 5.0VDC, 300mA (optional)
Automatic switch-offYes
LCD ScreenIf applicableYes
Low battery indicatorYes
Product weightapprox.110 g
Product dimensions117x 60 x 21 mm
Safety Key lockYes
Load detectionYes
CEYes
